Standard Filter Housings are an excellent choice for low-flow applications.
Their compact design makes them ideal for various applications, such as under sink filter systems, reverse osmosis systems, food services and recreational vehicles.

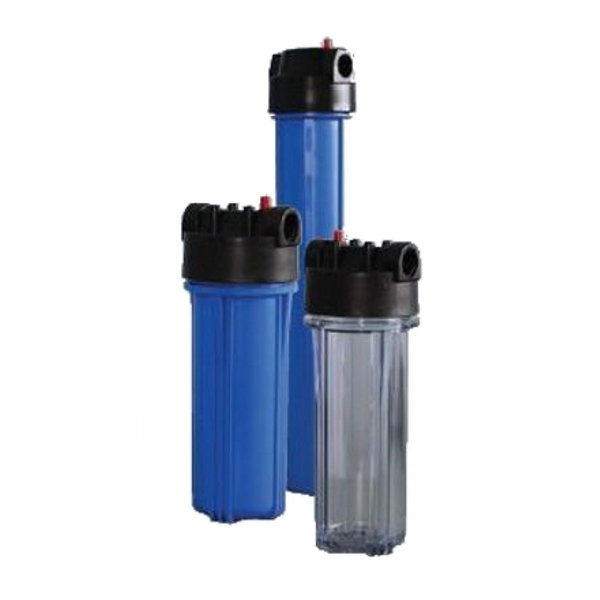

Standard Filter Housings
Standard Filter Housings are an excellent choice for low-flow applications.
Features
- 10 and 20-inch lengths
- Pressure release for easy cartridge replacement
- Double O-Ring seal that is leak-proof
- Maximum operating pressure of 85 PSI (5 BAR)
- Burst pressure over 500 PSI (30 BAR)
- Maximum operating temperature is 100˚F (37˚C)
- FNPT pipe threads
- Blue or clear sumps, black caps with pressure release
Specifications
| Part No. | Dimensions | Thread | Length | Initial PSI @ GPM | Colour |
|---|---|---|---|---|---|
|
FH 10SB075
|
12 1⁄4” x 5 1⁄8” (311 mm x 130 mm)
|
3⁄4” (19 mm) |
10” (254 mm)
|
1 PSI @ 10 GPM (0.1 BAR @ 38.8 Lpm)
|
Blue
|
|
FH 10SC075
|
12 1⁄4” x 5 1⁄8” (311 mm x 130 mm)
|
3⁄4” (19 mm) |
10” (254 mm)
|
1 PSI @ 10 GPM (0.1 BAR @ 38.8 Lpm)
|
Clear
|
|
FH 20SB075
|
22 7⁄8” x 5 1⁄8” (568 mm x 130 mm)
|
3⁄4” (19 mm) |
20” (508 mm)
|
2 PSI @ 5 GPM (0.1 BAR @ 18.9 Lpm)
|
Blue
|
